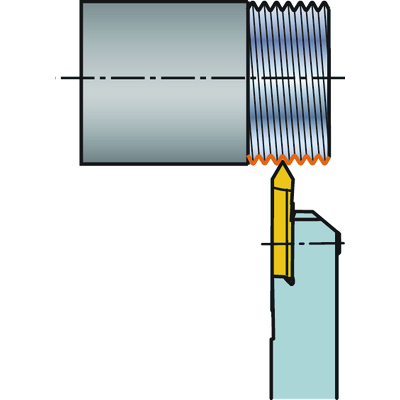

Generic representation
Available within a week
Package quantity: 5
ISO: MATR 3 60-N 1105
Material Id: 5735467
EAN: 12456570
ANSI: MATR 3 60-N 1105
Start values
p
vc160 m/min
m
vc130 m/min
n
vc1900 m/min
s
vc60 m/min

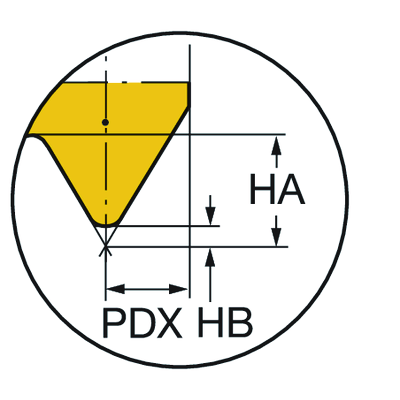

Technical illustrations

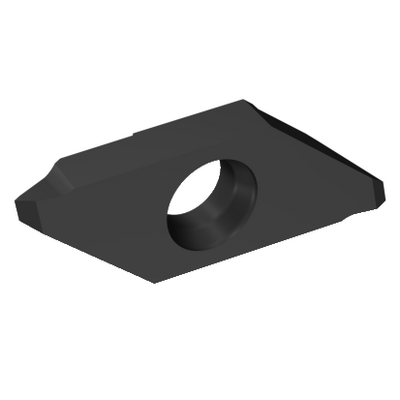

Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread form(THFT)
M (Metric 60°), MF 60°, UN 60°, UNC 60°, UNF 60°
Thread type(TTP)
external
Minimum thread pitch(TPN)
0.35 mm
Maximum thread pitch(TPX)
2 mm
Minimum threads per inch(TPIN)
12
Maximum threads per inch(TPIX)
72
Thread profile type(TPT)
partial profile
Tooth count(NT)
1
Theoretical thread height(HA)
1.5 mm
Thread height difference(HB)
0.05 mm
Profile distance ex(PDX)
1.59 mm
Profile distance ey(PDY)
0 mm
Insert mounting style code(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut XS -size 3R
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.05 mm
Hand
(HAND)
Right
Grade
(GRADE)
1105
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0047 kg
Insert seat(SSC_M)
3
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
28/05/2009
Release pack id(RELEASEPACK)
09.2
