MB-09FAR150-075-14R 1025
MB-09FAR150-075-14R 1025

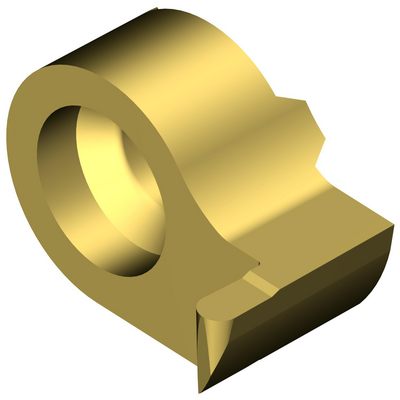

CoroCut® MB, solid carbide head for face groovingchevron_right
Specific representation
List price: 46.75 GBP
Available
Package quantity: 10
ISO: MB-09FAR150-075-14R 1025
Material Id: 6879602
EAN: 7323220325320
ANSI: MB-09FAR150-075-14R 1025
Start values (Primary (Radial) KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.02 mm/r (0.01 - 0.02)
vc 190 m/min (200 - 185)
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.02 mm/r (0.01 - 0.02)
vc 170 m/min (180 - 165)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.02 mm/r (0.01 - 0.02)
vc 140 m/min (145 - 135)
N1.3.C.AG, Hardness: 90 HB
N
fn 0.02 mm/r (0.01 - 0.02)
vc 290 m/min (360 - 36)
S2.0.Z.AG, Hardness: 350 HB
S
fn 0.02 mm/r (0.01 - 0.02)
vc 45 m/min (50 - 45)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Cutting width
(CW)
1.5 mm
Cutting width lower tolerance(CWTOLL)
0 mm
Cutting width upper tolerance(CWTOLU)
0.03 mm
Corner radius left(REL)
0.75 mm
Corner radius right(RER)
0.75 mm
Corner radius lower tolerance(RETOLL)
0 mm
Corner radius upper tolerance(RETOLU)
0.015 mm
Cutting depth maximum
(CDX)
2.5 mm
Axial groove inside diameter minimum(DAXIN)
11 mm
Axial groove support direction(AXGSUP)
1
Connection - machine side(ADINTMS)
CoroCut MB -size 09F(R)
Minimum overhang(OHN)
8.3 mm
Maximum overhang
(OHX)
8.3 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
9 mm
Functional length(LF)
8.3 mm
Functional width(WF)
9 mm
Functional height(HF)
0 mm
Weight of item(WT)
0.007 kg
Overall length(OAL)
9.2 mm
Release date(ValFrom20)
29/10/2015
Release pack id(RELEASEPACK)
16.1
