MB-11FB300-02-16L 1025
MB-11FB300-02-16L 1025

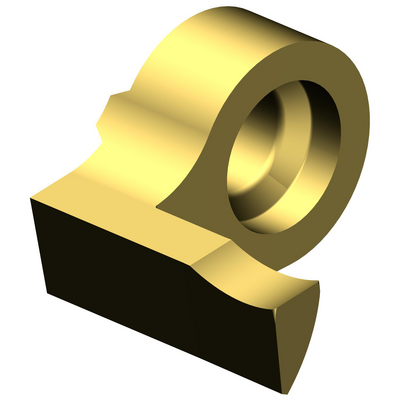

CoroCut® MB, solid carbide head for face groovingchevron_right
Specific representation
List price: 78.50 GBP
Available
Package quantity: 1
ISO: MB-11FB300-02-16L 1025
Material Id: 6350721
EAN: 26350721
ANSI: MB-11FB300-02-16L 1025
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
0 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius left(REL)
0.2 mm
Corner radius right(RER)
0.2 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Cutting depth maximum
(CDX)
10 mm
Axial groove inside diameter minimum(DAXIN)
10 mm
Axial groove support direction(AXGSUP)
2
Connection - machine side(ADINTMS)
CoroCut MB -size 11
Maximum overhang
(OHX)
15.8 mm
Hand
(HAND)
Left
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
11 mm
Functional length(LF)
15.8 mm
Functional width(WF)
11 mm
Functional height(HF)
0 mm
Weight of item(WT)
0.021 kg
Overall length(OAL)
16.6 mm
Release date(ValFrom20)
20/02/2013
Release pack id(RELEASEPACK)
13.1
