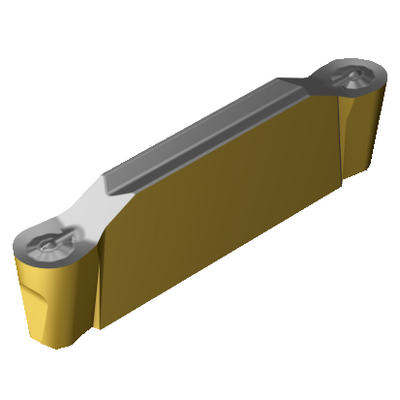

Generic representation
Out of stock
Package quantity: 10
ISO: N123E2-0239-RO S205
Material Id: 8003560
EAN: 7323225712361
ANSI: N123E2-0239-RO S205
Start values (Depth of cut 0.36 mm )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.36 mm (0.1 - 0.6)
fn 0.17 mm/r (0.11 - 0.25)
hex 0.12 mm/r (0.08 - 0.18)
vc 100 m/min (105 - 90)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RO
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size E2
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
E
Cutting width
(CW)
2.39 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius
(RE)
1.195 mm
Corner radius lower tolerance(RETOLL)
-0.01 mm
Corner radius upper tolerance(RETOLU)
0.01 mm
Cutting depth maximum
(CDX)
19 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
1 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
S205
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
4.3321 mm
Clearance angle major(AN)
7 °
Insert gauge length(LIG)
20.05 mm
Weight of item(WT)
0.0014 kg
Insert seat size code imperial view(SSC_N)
E
Release date(ValFrom20)
06/05/2021
Release pack id(RELEASEPACK)
21.2
