Generic representation
Package quantity: 5
ISO: N123F1-0300-RE 7025
Material Id: 6256939
EAN: 26256939
ANSI: N123F1-0300-RE 7025
Start values
| H1.3.Z.HA, Hardness: 60 HRC | ||
| h |  | fn 0.02 mm/r (0.01 - 0.06) vc 180 m/min (190 - 175) |
 | fn 0.14 mm/r (0.07 - 0.21) | |
| | |
|---|---|---|
| H1.3.Z.HA, Hardness: 60 HRC | ||
| h | fn 0.02 mm/r (0.01 - 0.06) vc 180 m/min (190 - 175) | fn 0.14 mm/r (0.07 - 0.21) |

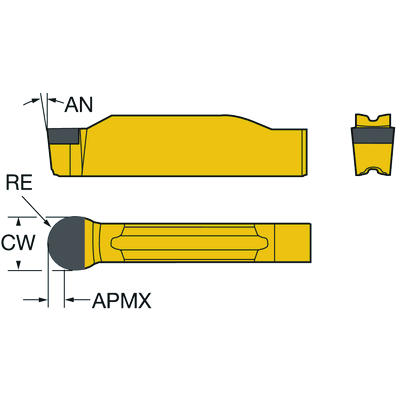

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RE
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size F1
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
F
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius
(RE)
1.5 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
0.6 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
7025
Insert thickness(S)
4.3321 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.002 kg
Insert seat size code imperial view(SSC_N)
F
Release date(ValFrom20)
20/02/2013
Release pack id(RELEASEPACK)
13.1
