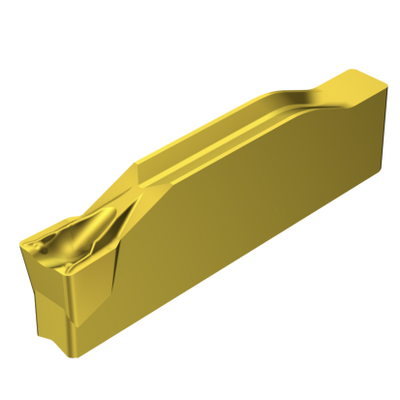

Generic representation
Package quantity: 10
ISO: N123K1-0600-0004-TF 2135
Material Id: 5736661
EAN: 11192355
ANSI: N123K1-0600-0004-TF 2135
Start values
| P2.1.Z.AN, Hardness: 175 HB | ||
| p |  | fn 0.18 mm/r (0.08 - 0.29) vc 115 m/min (155 - 100) |
 | fn 0.19 mm/r (0.08 - 0.3) | |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | | fn 0.18 mm/r (0.08 - 0.29) vc 95 m/min (125 - 80) |
| fn 0.19 mm/r (0.08 - 0.3) | |
| | |
|---|---|---|
| P2.1.Z.AN, Hardness: 175 HB | ||
| p | fn 0.18 mm/r (0.08 - 0.29) vc 115 m/min (155 - 100) | fn 0.19 mm/r (0.08 - 0.3) |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.18 mm/r (0.08 - 0.29) vc 95 m/min (125 - 80) | fn 0.19 mm/r (0.08 - 0.3) |
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
TF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section with rail
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size K1
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
K
Cutting width
(CW)
6 mm
Cutting width lower tolerance(CWTOLL)
0 mm
Cutting width upper tolerance(CWTOLU)
0.1 mm
Corner radius left(REL)
0.4 mm
Corner radius right(RER)
0.4 mm
Corner radius lower tolerance(RETOLL)
-0.1 mm
Corner radius upper tolerance(RETOLU)
0.1 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
3.4 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
2135
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
4.35 mm
Clearance angle major(AN)
7 °
Insert gauge length(LIG)
24.52 mm
Weight of item(WT)
0.0076 kg
Insert seat size code imperial view(SSC_N)
K
Release date(ValFrom20)
03/01/2000
Release pack id(RELEASEPACK)
01.2
