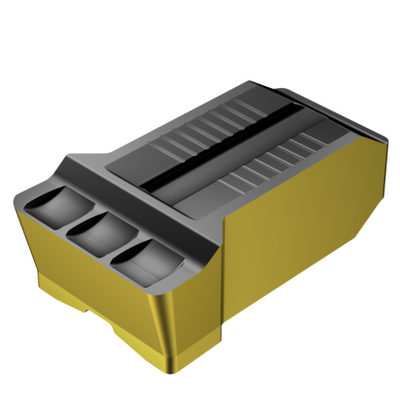

Generic representation
Package quantity: 10
ISO: N123R1-1500-0010-GR 4325
Material Id: 6532107
EAN: 26532107
ANSI: N123R1-1500-0010-GR 4325
Start values (Primary (Radial) KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
p
fn 0.35 mm/r (0.2 - 0.56)
vc 145 m/min (180 - 125)
K2.2.C.UT, Hardness: 245 HB
k
fn 0.35 mm/r (0.2 - 0.56)
vc 115 m/min (140 - 100)

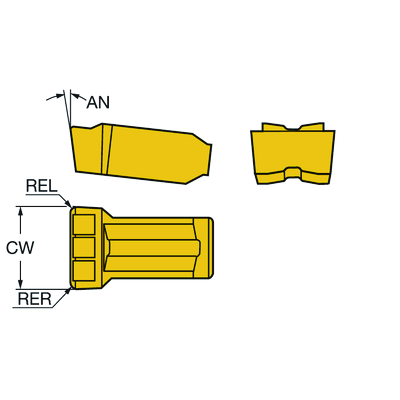

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
GR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Concave prismatic section with rail
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size R1
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
R
Cutting width
(CW)
15 mm
Cutting width lower tolerance(CWTOLL)
-0.08 mm
Cutting width upper tolerance(CWTOLU)
0.08 mm
Corner radius left(REL)
1.2 mm
Corner radius right(RER)
1.2 mm
Corner radius lower tolerance(RETOLL)
-0.1 mm
Corner radius upper tolerance(RETOLU)
0.1 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
4325
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
7.49 mm
Clearance angle major(AN)
13 °
Insert gauge length(LIG)
25.4 mm
Weight of item(WT)
0.0251 kg
Insert seat size code imperial view(SSC_N)
R
Release date(ValFrom20)
20/09/2014
Release pack id(RELEASEPACK)
14.2
