Generic representation
Package quantity: 10
ISO: N151.2-300-25-4U H13A
Material Id: 5737184
EAN: 10277805
ANSI: N151.2-300-25-4U H13A
Start values (Primary (Radial) KAPR 90 deg )
K2.2.C.UT, Hardness: 245 HB
k
fn 0.08 mm/r (0.04 - 0.14)
vc 70 m/min (75 - 65)
N1.3.C.AG, Hardness: 90 HB
n
fn 0.08 mm/r (0.04 - 0.14)
vc 1500 m/min (1900 - 190)
S2.0.Z.AG, Hardness: 350 HB
s
fn 0.08 mm/r (0.04 - 0.14)
vc 18 m/min (21 - 16)

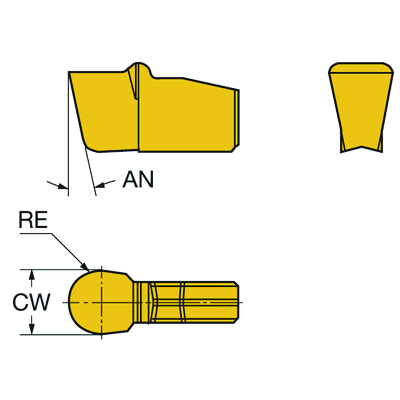

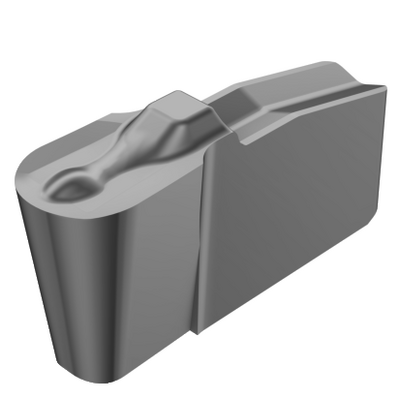

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
4U
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
Q-Cut 151.2 -size 25
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
25
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius
(RE)
1.5 mm
Corner radius left(REL)
1.5 mm
Corner radius right(RER)
1.5 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
H13A
Insert thickness(S)
6.787 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0009 kg
Insert seat size code imperial view(SSC_N)
25
Release date(ValFrom20)
04/12/1989
Release pack id(RELEASEPACK)
89.1
