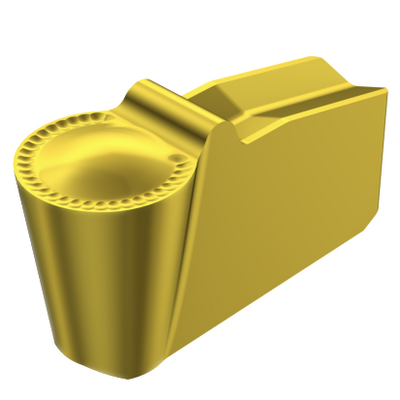

Generic representation
Package quantity: 10
ISO: N151.2-500-40-5P 235
Material Id: 5737214
EAN: 10542431
ANSI: N151.2-500-40-5P 235
Start values
| P2.1.Z.AN, Hardness: 175 HB | ||
| p |  | fn 0.15 mm/r (0.1 - 0.2) vc 125 m/min (135 - 125) |
 | fn 0.57 mm/r (0.3 - 0.89) | |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | | fn 0.15 mm/r (0.1 - 0.2) vc 100 m/min (105 - 100) |
| fn 0.57 mm/r (0.3 - 0.89) | |
| | |
|---|---|---|
| P2.1.Z.AN, Hardness: 175 HB | ||
| p | fn 0.15 mm/r (0.1 - 0.2) vc 125 m/min (135 - 125) | fn 0.57 mm/r (0.3 - 0.89) |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.15 mm/r (0.1 - 0.2) vc 100 m/min (105 - 100) | fn 0.57 mm/r (0.3 - 0.89) |
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
5P
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
Q-Cut 151.2 -size 40
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
40
Cutting width
(CW)
5 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius
(RE)
2.5 mm
Corner radius lower tolerance(RETOLL)
-0.025 mm
Corner radius upper tolerance(RETOLU)
0.025 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
2.2 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
235
Coating(COATING)
CVD TiCN+TiN
Insert thickness(S)
8.106 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0024 kg
Insert seat size code imperial view(SSC_N)
40
Release date(ValFrom20)
25/03/1991
Release pack id(RELEASEPACK)
91.1
