Generic representation
Available
Package quantity: 10
ISO: N151.3-300-25-7P 1125
Material Id: 5738014
EAN: 12313615
ANSI: N151.3-300-25-7P 1125
Start values
| p |  | fn0.15 mm/r (0.1 - 0.25) vc160 m/min (195 - 145) |
 | fn0.43 mm/r (0.21 - 0.64) | |
| m | | fn0.15 mm/r (0.1 - 0.25) vc130 m/min (155 - 115) |
| fn0.43 mm/r (0.21 - 0.64) | |
| k | | fn0.15 mm/r (0.1 - 0.25) vc110 m/min (130 - 100) |
| fn0.43 mm/r (0.21 - 0.64) | |
| s | | fn0.15 mm/r (0.1 - 0.25) vc30 m/min (37 - 27) |
| fn0.43 mm/r (0.21 - 0.64) |
| | |
|---|---|---|
| p | fn0.15 mm/r (0.1 - 0.25) vc160 m/min (195 - 145) | fn0.43 mm/r (0.21 - 0.64) |
| m | fn0.15 mm/r (0.1 - 0.25) vc130 m/min (155 - 115) | fn0.43 mm/r (0.21 - 0.64) |
| k | fn0.15 mm/r (0.1 - 0.25) vc110 m/min (130 - 100) | fn0.43 mm/r (0.21 - 0.64) |
| s | fn0.15 mm/r (0.1 - 0.25) vc30 m/min (37 - 27) | fn0.43 mm/r (0.21 - 0.64) |

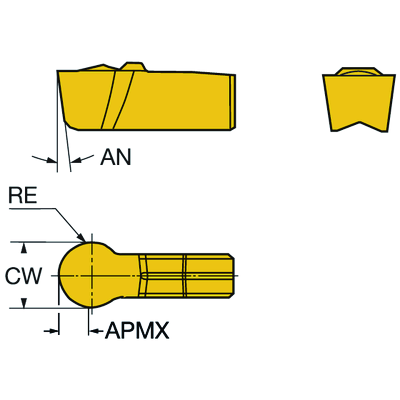

Technical illustrations

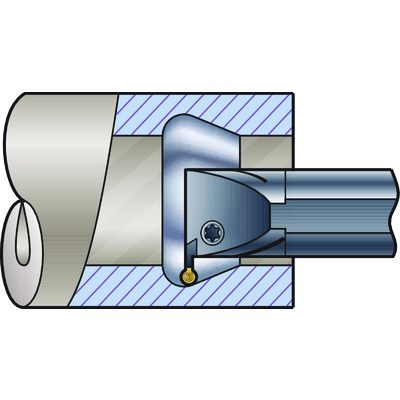

Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
7P
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
Q-Cut 151.3face -size 25
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
25
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius
(RE)
1.5 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
1.3 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
5.287 mm
Clearance angle major(AN)
9 °
Weight of item(WT)
0.0005 kg
Insert seat size code imperial view(SSC_N)
25
Release date(ValFrom20)
28/01/2008
Release pack id(RELEASEPACK)
08.1
