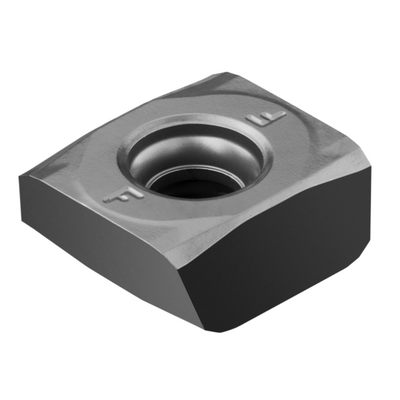

Generic representation
Package quantity: 10
ISO: N260.8-1204-F H13A
Material Id: 5736998
EAN: 10770793
ANSI: N260.8-1204-F H13A
Start values (KAPR 75 deg )
K2.2.C.UT, Hardness: 245 HB
k
fz 0.16 mm (0.08 - 0.21)
hex 0.15 mm (0.08 - 0.2)
vc 95 m/min (110 - 90)
N1.3.C.AG, Hardness: 90 HB
n
fz 0.16 mm (0.08 - 0.21)
hex 0.15 mm (0.08 - 0.2)
vc 830 m/min (920 - 770)
S2.0.Z.AG, Hardness: 350 HB
s
fz 0.16 mm (0.08 - 0.21)
hex 0.15 mm (0.08 - 0.2)
vc 33 m/min (36 - 30)

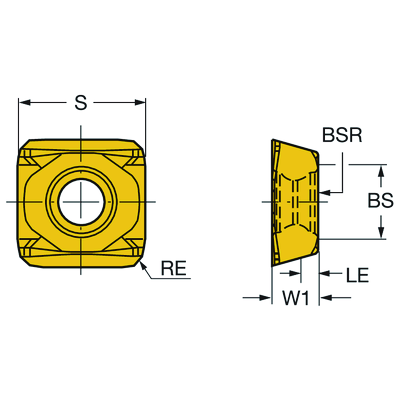

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
F
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
Mill AutoAF -N260.8 1204-F
Cutting edge count(CEDC)
4
Insert width(W1)
4.7625 mm
Cutting edge effective length(LE)
1 mm
Depth of cut maximum
(APMX)
1 mm
Wiper edge length(BS)
7 mm
Wiper edge radius(BSR)
800 mm
Corner radius
(RE)
1.8 mm
Major cutting edge angle(KRINS)
75 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
12.7 mm
Weight of item(WT)
0.007 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/04/1996
Release pack id(RELEASEPACK)
96.2
