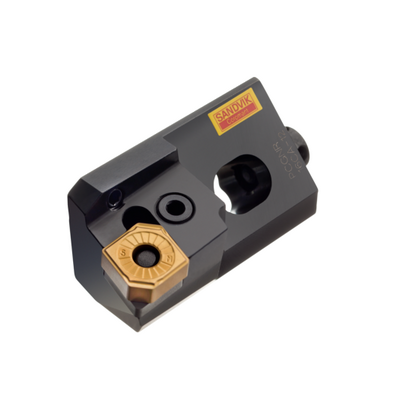

Generic representation
Available
Package quantity: 1
ISO: PCGNR 16CA-12
Material Id: 5737405
EAN: 10070056
ANSI: PCGNR 16CA-12

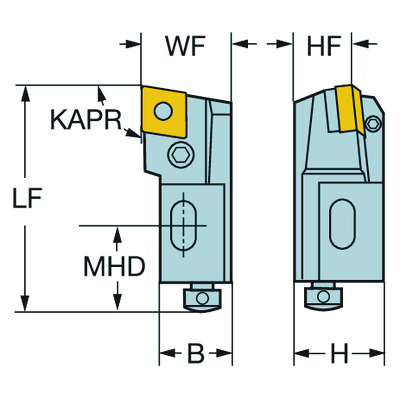

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Coolant exit style(CXSC)
no coolant exit
Lead angle(PSIR)
0 °
Clamping type code(MTP)
clamp with pin through hole
Connection - machine side(ADINTMS)
Cartridge (ISO5611) -right hand: 16CA
Insert type(CUTINT_MASTER)
CNMG 120408
Minimum bore diameter
(DMIN_1)
60 mm
Minimum bore diameter(DMIN_2)
75 mm
Maximum overhang
(OHX)
63 mm
Hand
(HAND)
Right
Shank width(B)
20 mm
Shank height(H)
25 mm
Mounting hole distance(MHD)
25 mm
Functional length(LF)
63 mm
Functional width(WF)
25 mm
Functional height(HF)
16 mm
Torque(TQ)
5 Nm
Weight of item(WT)
0.1714 kg
Overall length(OAL)
63 mm
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
01/11/1976
Release pack id(RELEASEPACK)
76.1
