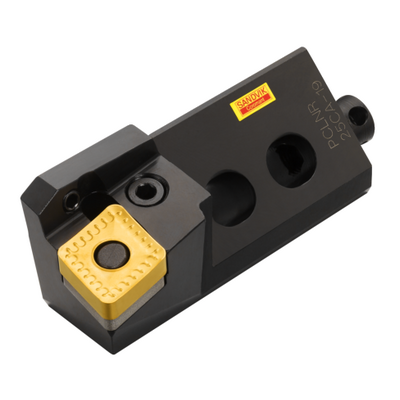

Generic representation
Package quantity: 1
ISO: PCLNR 25CA-19
Material Id: 5738412
EAN: 10066512
ANSI: PCLNR 25CA-19

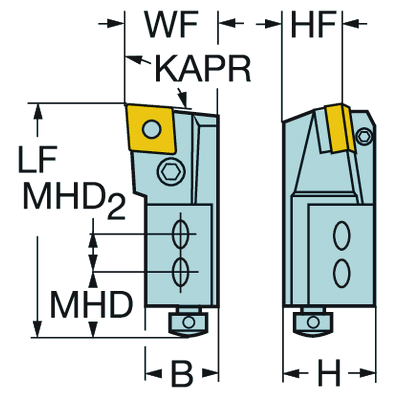

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
95 °
Coolant exit style(CXSC)
no coolant exit
Lead angle(PSIR)
-5 °
Clamping type code(MTP)
clamp with pin through hole
Connection - machine side(ADINTMS)
Cartridge (ISO5611) -right hand: 25CA
Insert type(CUTINT_MASTER)
CNMG 190612
Minimum bore diameter
(DMIN_1)
100 mm
Minimum bore diameter(DMIN_2)
115 mm
Maximum overhang
(OHX)
100 mm
Hand
(HAND)
Right
Shank width(B)
25 mm
Shank height(H)
38 mm
Mounting hole distance(MHD)
30 mm
Mounting hole distance 2(MHD2)
20 mm
Functional length(LF)
100 mm
Functional width(WF)
32 mm
Functional height(HF)
25 mm
Torque(TQ)
10 Nm
Weight of item(WT)
0.46 kg
Overall length(OAL)
100 mm
Insert seat(SSC_M)
19
Insert seat size code imperial view(SSC_N)
3/4
Release date(ValFrom20)
23/05/1977
Release pack id(RELEASEPACK)
77.1
