New

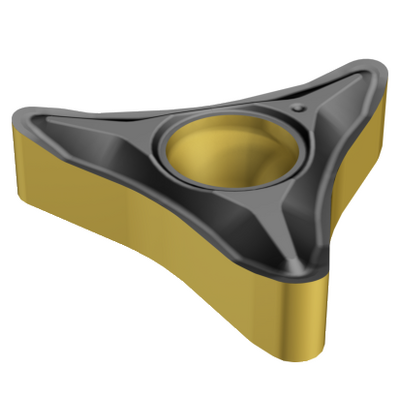

Generic representation
List price: 16.55 GBP
Available
Package quantity: 10
ISO: PI-A0608L-F5 4415
Material Id: 8792579
EAN: 7323228720356
ANSI: PI-A0608L-F5 4415
Start values (KAPR 35 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 0.25 mm (0.1 - 1.5)
fn 0.3 mm/r (0.1 - 0.51)
hex 0.17 mm/r (0.06 - 0.29)
vc 395 m/min (465 - 345)
K2.2.C.UT, Hardness: 245 HB
K
ap 0.25 mm (0.1 - 1.5)
fn 0.3 mm/r (0.1 - 0.51)
hex 0.17 mm/r (0.06 - 0.29)
vc 270 m/min (305 - 245)
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 1.5 mm (0.25 - 2)
fn 0.17 mm/r (0.06 - 0.29)
hex 0.17 mm/r (0.06 - 0.29)
vc 395 m/min (465 - 345)
K2.2.C.UT, Hardness: 245 HB
K
ap 1.5 mm (0.25 - 2)
fn 0.17 mm/r (0.06 - 0.29)
hex 0.17 mm/r (0.06 - 0.29)
vc 270 m/min (305 - 245)

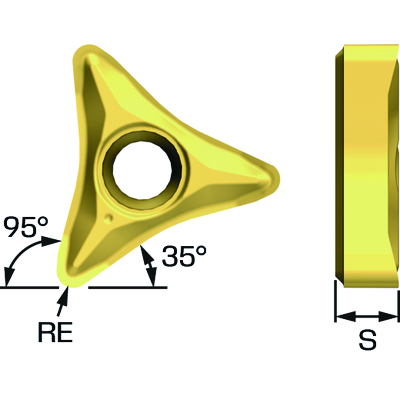

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
F5
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn PRIME PI-A06
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
6 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
95 °
Face land width(BN)
0.26 mm
Insert rake angle(GAN)
15 °
Hand
(HAND)
Left
Grade
(GRADE)
4415
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
3 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.003 kg
Insert seat(SSC_M)
PI-A06
Insert seat size code imperial view(SSC_N)
PI-A06
Release date(ValFrom20)
22/02/2026
Release pack id(RELEASEPACK)
26.1
