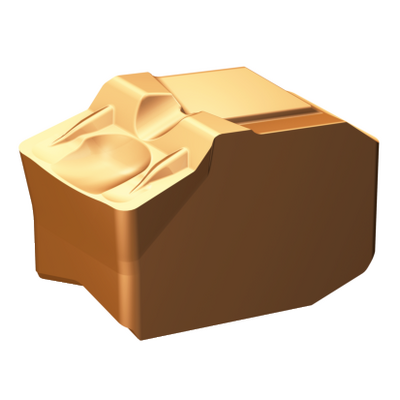

Generic representation
Package quantity: 10
ISO: QD-NL-0800-0008-GM 1125
Material Id: 6427511
EAN: 26427511
ANSI: QD-NL-0800-0008-GM 1125
Start values (Primary (Radial) KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
p
fn 0.23 mm/r (0.14 - 0.35)
vc 145 m/min (175 - 130)
M1.0.Z.AQ, Hardness: 200 HB
m
fn 0.23 mm/r (0.14 - 0.35)
vc 115 m/min (140 - 105)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
GM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QD -size L
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
L
Cutting width
(CW)
8 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius left(REL)
0.8 mm
Corner radius right(RER)
0.8 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
6.5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0162 kg
Insert seat size code imperial view(SSC_N)
L
Release date(ValFrom20)
21/02/2015
Release pack id(RELEASEPACK)
15.1
