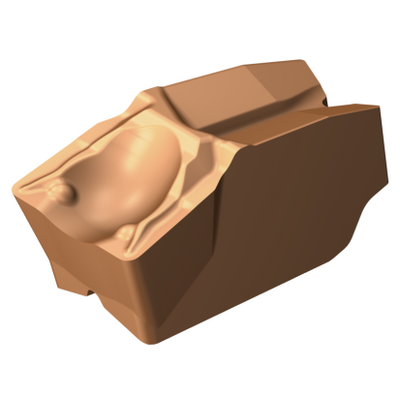

Generic representation
Package quantity: 10
ISO: QFT-G-0300-03-TF 1125
Material Id: 7193274
EAN: 7323221539115
ANSI: QFT-G-0300-03-TF 1125
Start values
| P2.1.Z.AN, Hardness: 175 HB | ||
| p |  | fn 0.1 mm/r (0.05 - 0.25) vc 175 m/min (240 - 145) |
 | ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 170 m/min (240 - 135) | |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | | fn 0.1 mm/r (0.05 - 0.25) vc 145 m/min (195 - 115) |
| ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 140 m/min (195 - 110) | |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | | fn 0.1 mm/r (0.05 - 0.25) vc 120 m/min (160 - 100) |
| ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 120 m/min (160 - 95) | |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | | fn 0.1 mm/r (0.05 - 0.25) vc 33 m/min (45 - 27) |
| ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 32 m/min (45 - 26) | |
| | |
|---|---|---|
| P2.1.Z.AN, Hardness: 175 HB | ||
| p | fn 0.1 mm/r (0.05 - 0.25) vc 175 m/min (240 - 145) | ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 170 m/min (240 - 135) |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.1 mm/r (0.05 - 0.25) vc 145 m/min (195 - 115) | ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 140 m/min (195 - 110) |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | fn 0.1 mm/r (0.05 - 0.25) vc 120 m/min (160 - 100) | ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 120 m/min (160 - 95) |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | fn 0.1 mm/r (0.05 - 0.25) vc 33 m/min (45 - 27) | ap 1.1 mm (0.4 - 2) fn 0.15 mm/r (0.05 - 0.3) vc 32 m/min (45 - 26) |

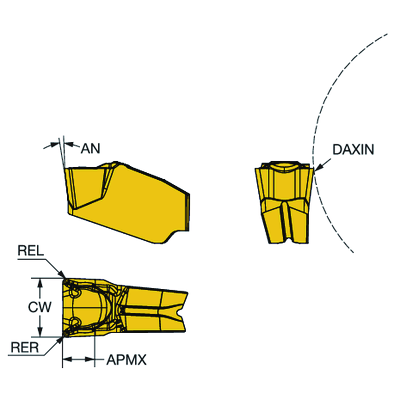

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
TF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QFT -size G
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
QFT-G
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Spot chamfer(CF)
2.4 mm
Corner radius left(REL)
0.3 mm
Corner radius right(RER)
0.3 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Axial groove inside diameter minimum(DAXIN)
30 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
2 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0003 kg
Insert seat size code imperial view(SSC_N)
QFT-G
Release date(ValFrom20)
22/02/2018
Release pack id(RELEASEPACK)
18.1
