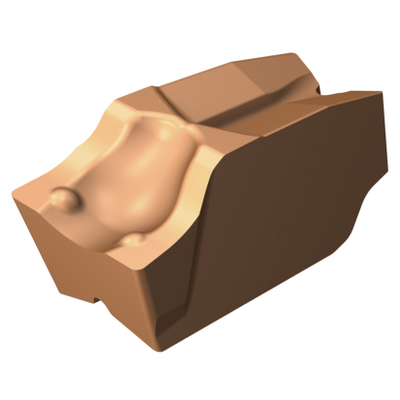

Generic representation
Package quantity: 10
ISO: QFU-G-0300-02-GF 1125
Material Id: 7193297
EAN: 7323221539344
ANSI: QFU-G-0300-02-GF 1125
Start values (Primary (Radial) KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
p
fn 0.1 mm/r (0.03 - 0.25)
vc 190 m/min (285 - 145)
M1.0.Z.AQ, Hardness: 200 HB
m
fn 0.1 mm/r (0.03 - 0.25)
vc 155 m/min (230 - 115)
S2.0.Z.AG, Hardness: 350 HB
s
fn 0.1 mm/r (0.03 - 0.25)
vc 36 m/min (55 - 27)

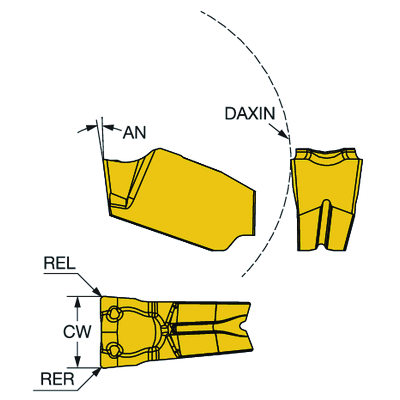

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
GF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QFU -size G
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
QFU-G
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Spot chamfer(CF)
2.6 mm
Corner radius left(REL)
0.2 mm
Corner radius right(RER)
0.2 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Axial groove inside diameter minimum(DAXIN)
30 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0007 kg
Insert seat size code imperial view(SSC_N)
QFU-G
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
