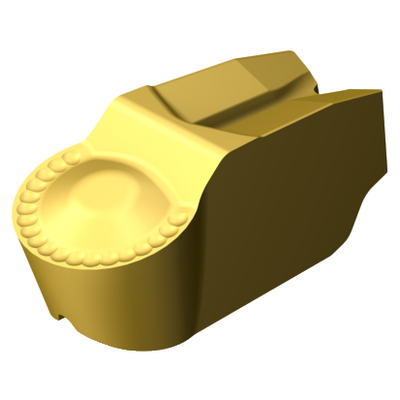

Generic representation
Out of stock
Package quantity: 10
ISO: QFU-G-0300-RM 1135
Material Id: 7193306
EAN: 7323221539436
ANSI: QFU-G-0300-RM 1135
Start values
| P2.1.Z.AN, Hardness: 175 HB | ||
| p |  | fn 0.08 mm/r (0.05 - 0.12) vc 150 m/min (180 - 135) |
 | ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 90 m/min (110 - 80) | |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | | fn 0.08 mm/r (0.05 - 0.12) vc 125 m/min (150 - 110) |
| ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 75 m/min (90 - 65) | |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | | fn 0.08 mm/r (0.05 - 0.12) vc 100 m/min (120 - 95) |
| ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 65 m/min (80 - 60) | |
| | |
|---|---|---|
| P2.1.Z.AN, Hardness: 175 HB | ||
| p | fn 0.08 mm/r (0.05 - 0.12) vc 150 m/min (180 - 135) | ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 90 m/min (110 - 80) |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.08 mm/r (0.05 - 0.12) vc 125 m/min (150 - 110) | ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 75 m/min (90 - 65) |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | fn 0.08 mm/r (0.05 - 0.12) vc 100 m/min (120 - 95) | ap 0.75 mm (0.1 - 1.2) fn 0.49 mm/r (0.28 - 0.71) vc 65 m/min (80 - 60) |
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QFU -size G
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
QFU-G
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius
(RE)
1.5 mm
Axial groove inside diameter minimum(DAXIN)
30 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
1.3 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1135
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
3.5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0007 kg
Insert seat size code imperial view(SSC_N)
QFU-G
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
