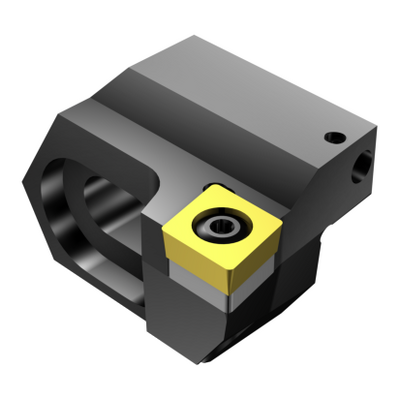

Generic representation
Available
Package quantity: 1
ISO: R820B-AR12SCFC06B
Material Id: 7254668
EAN: 7323221822996
ANSI: R820B-AR12SCFC06B

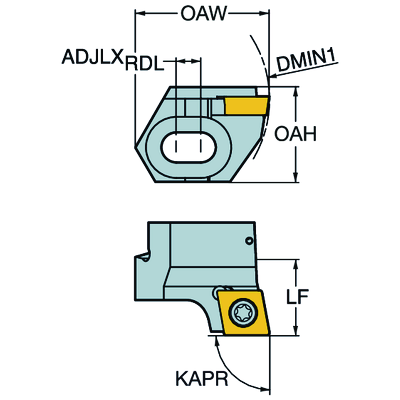

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 060204
Connection - machine side(ADINTMS)
CoroBore 820 -size B
Minimum bore diameter
(DMIN)
44 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
12 mm
Functional width(WF)
11.35 mm
Overall length(OAL)
18 mm
Overall height(OAH)
15.3 mm
Overall width(OAW)
20.8 mm
Torque(TQ)
0.9 Nm
Weight of item(WT)
0.0334 kg
Insert seat(SSC_M)
06
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
19/02/2017
Release pack id(RELEASEPACK)
17.1
