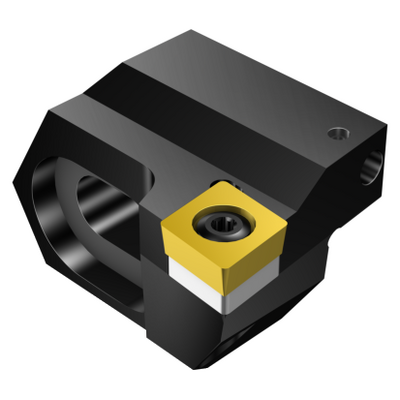

Generic representation
Made-to-order
Package quantity: 1
ISO: R820I-AR26SCLC12A
Material Id: 5748103
EAN: 12055956
ANSI: R820I-AR26SCLC12A

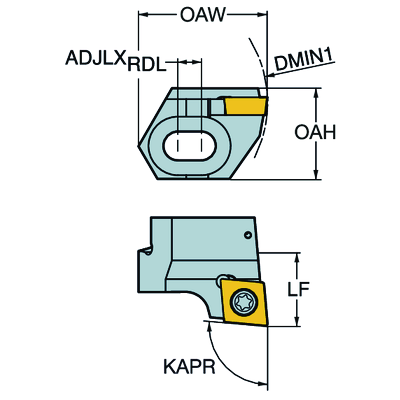

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
95 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 120408
Connection - machine side(ADINTMS)
CoroBore 820 -size I
Minimum bore diameter
(DMIN)
212 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
26 mm
Functional width(WF)
48.43 mm
Overall length(OAL)
42 mm
Overall height(OAH)
42.2 mm
Overall width(OAW)
100.4 mm
Torque(TQ)
3.9 Nm
Weight of item(WT)
0.6164 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
08/11/2019
Release pack id(RELEASEPACK)
05.2
