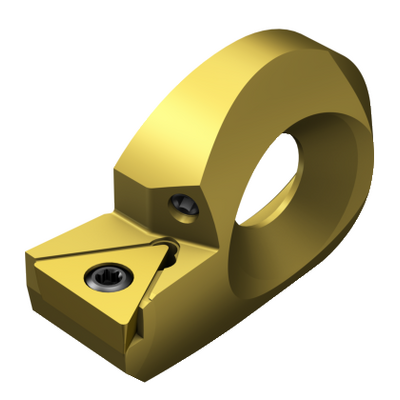

Generic representation
Available
Package quantity: 1
ISO: R826C-BF23STUC11HP
Material Id: 6873084
EAN: 7323220291113
ANSI: R826C-BF23STUC11HP
Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
92 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
CoroBore 826 -size C
Minimum bore diameter
(DMIN)
56 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
radial entry
Coolant pressure(CP)
70 bar
Functional length(LF)
23 mm
Functional width(WF)
10.5 mm
Overall length(OAL)
35 mm
Overall height(OAH)
23.5 mm
Overall width(OAW)
13.2 mm
Torque(TQ)
0.9 Nm
Weight of item(WT)
0.04 kg
Insert seat(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
23/09/2015
Release pack id(RELEASEPACK)
15.2
