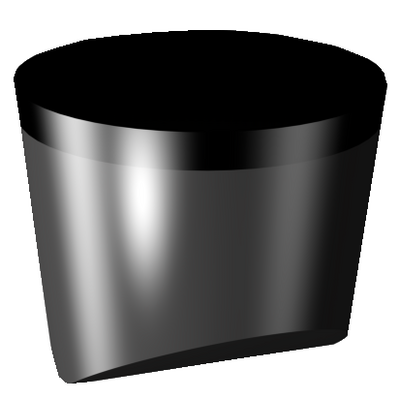

Generic representation
Package quantity: 1
ISO: RCGX090700E 7014
Material Id: 7992863
EAN: 7323225661386
ANSI: RCGX090700E 7014
Start values (Depth of cut 1.4 mm )
S2.0.Z.AG, Hardness: 350 HB
s
ap 1.4 mm (0.6 - 2.4)
fn 0.16 mm/r (0.08 - 0.24)
hex 0.11 mm/r (0.06 - 0.17)
vc 255 m/min (275 - 240)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
E
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Convex prismatic cross section
Insert size and shape
(CUTINT_SIZESHAPE)
RC0907
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Round
Corner radius
(RE)
4.7625 mm
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7014
Substrate(SUBSTRATE)
BL
Insert thickness(S)
7.9375 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.018 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
25/09/2020
Release pack id(RELEASEPACK)
20.2
