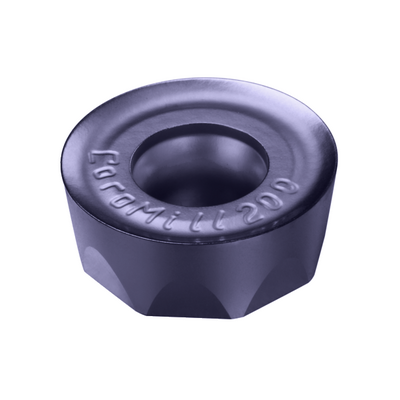

Generic representation
List price: 15.85 GBP
Available
Package quantity: 10
ISO: RCHT1204M0-ML 1240
Material Id: 8895075
EAN: 7323229086611
ANSI: RCHT1204M0-ML 1240
Start values (Depth of cut 1.757 mm )
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.21 mm (0.08 - 0.28)
hex 0.15 mm (0.06 - 0.2)
vc 145 m/min (165 - 135)
S2.0.Z.AG, Hardness: 350 HB
S
fz 0.21 mm (0.08 - 0.28)
hex 0.15 mm (0.06 - 0.2)
vc 37 m/min (45 - 34)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
ML
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 200 RC1204M
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12 mm
Insert shape code(SC)
R - Round inserts
Depth of cut maximum
(APMX)
1.76 mm
Corner radius
(RE)
6 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1240
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0044 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
.472
Release date(ValFrom20)
22/02/2026
Release pack id(RELEASEPACK)
26.1
