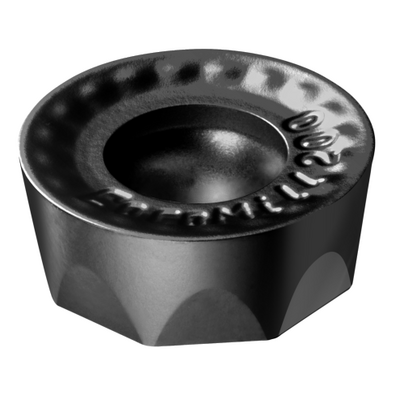

Generic representation
List price: 71.80 PLN
Available within a week
Package quantity: 10
ISO: RCKT 13 04 00-KH 3040
Material Id: 5740546
EAN: 10931465
ANSI: RCKT 13 04 00-KH 3040
Start values (Depth of cut 1.86 mm )
P2.1.Z.AN, Hardness: 175 HB
p
fz 0.35 mm (0.1 - 0.42)
hex 0.25 mm (0.07 - 0.3)
vc 205 m/min (290 - 185)
K2.2.C.UT, Hardness: 245 HB
k
fz 0.35 mm (0.1 - 0.42)
hex 0.25 mm (0.07 - 0.3)
vc 155 m/min (225 - 140)
H1.3.Z.HA, Hardness: 60 HRC
h
fz 0.35 mm (0.1 - 0.42)
hex 0.25 mm (0.07 - 0.3)
vc 28 m/min (45 - 25)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
KH
Operation type
(CTPT)
heavy
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 200 RC1304
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Round
Depth of cut maximum
(APMX)
1.86 mm
Corner radius
(RE)
6.35 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
3040
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0062 kg
Insert seat(SSC_M)
13
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
17/06/1996
Release pack id(RELEASEPACK)
96.3
