RCMT 10 T3 MP-M3 1105
RCMT 10 T3 MP-M3 1105

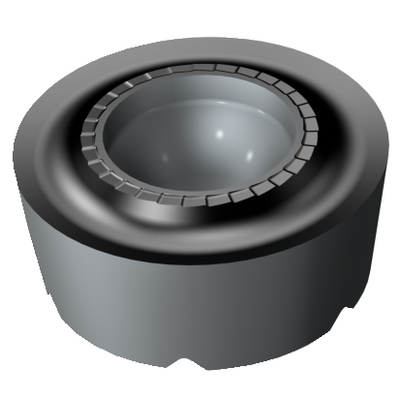

Generic representation
Being replaced by RCMT 10 T3 MP-M3 1205
Available within a week
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: RCMT 10 T3 MP-M3 1105
Material Id: 7960634
EAN: 7323225519557
ANSI: RCMT 10 T3 MP-M3 1105
Start values (Depth of cut 1 mm )
M1.0.Z.AQ, Hardness: 200 HB
m
ap 1 mm (0.5 - 2.5)
fn 0.33 mm/r (0.2 - 0.55)
hex 0.2 mm/r (0.12 - 0.33)
vc 170 m/min (205 - 135)
S2.0.Z.AG, Hardness: 350 HB
s
ap 1 mm (0.5 - 2.5)
fn 0.33 mm/r (0.2 - 0.55)
hex 0.2 mm/r (0.12 - 0.33)
vc 36 m/min (60 - 17)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
M3
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
Rail interface RC10T3MP
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
10 mm
Insert shape code(SC)
Round
Corner radius
(RE)
5 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1105
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.9688 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0025 kg
Insert seat(SSC_M)
10
Insert seat size code imperial view(SSC_N)
.394
Release date(ValFrom20)
10/09/2020
Release pack id(RELEASEPACK)
20.2
