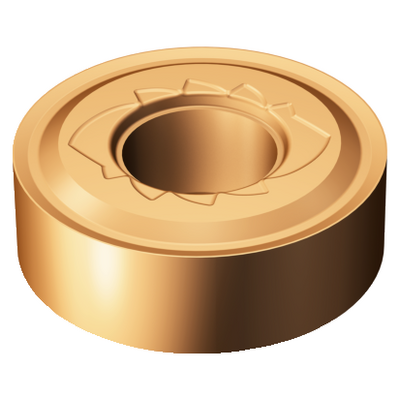

Generic representation
Available
Package quantity: 10
ISO: RNMG 19 06 00-SM 1115
Material Id: 6851326
EAN: 7323220191727
ANSI: RNMG 64-SM 1115
Start values (Depth of cut 2.9 mm )
S2.0.Z.AG, Hardness: 350 HB
s
ap 2.9 mm (2 - 4.8)
fn 0.53 mm/r (0.31 - 0.84)
hex 0.38 mm/r (0.22 - 0.6)
vc 11 m/min (25 - 4.3)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
SM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
7.925 mm
Insert size and shape
(CUTINT_SIZESHAPE)
RN1906
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
19.05 mm
Insert shape code(SC)
Round
Corner radius
(RE)
9.525 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1115
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0201 kg
Insert seat(SSC_M)
19
Insert seat size code imperial view(SSC_N)
3/4
Release date(ValFrom20)
22/09/2015
Release pack id(RELEASEPACK)
15.2
