SBEN 12 04 ZZ K20Wcontent_copy

SBEN 12 04 ZZ K20W

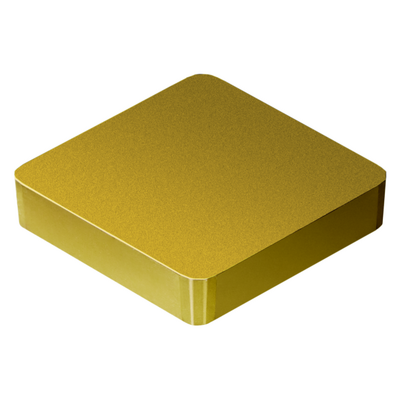

Generic representation
List price: 35.20 GBPfile_copy
Available
Package quantity: 10
ISO: SBEN 12 04 ZZ K20Wfile_copy
Material Id: 5748851file_copy
EAN: 12436546file_copy
ANSI: SBEN 12 04 ZZ K20Wfile_copy
Start values  (KAPR  90 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.17  mm   (0.1 - 0.3)
hex 0.17  mm   (0.1 - 0.3)
vc 170  m/min   (195 - 130)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
K
Search Icon
Operation type (CTPT)info
lightSearch Icon
Insert mounting style code (metric)(IFS)info
Without fixing holeSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
SB1204ZZSearch Icon
Cutting edge count(CEDC)info
4Search Icon
Inscribed circle diameter(IC)info
12.7 mmSearch Icon
Insert shape code(SC)info
SquareSearch Icon
Cutting edge effective length(LE)info
8 mmSearch Icon
Depth of cut maximum (APMX)info
8 mmSearch Icon
Corner chamfer(KCH)info
45 °Search Icon
Corner chamfer width(CHW)info
1.2 mmSearch Icon
Wiper edge length(BS)info
10.3 mmSearch Icon
Wiper edge radius(BSR)info
2,960 mmSearch Icon
Corner radius (RE)info
0.5 mmSearch Icon
Major cutting edge angle(KRINS)info
90 °Search Icon
Insert rake angle(GAN)info
30 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
K20WSearch Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCrN+Al2O3+TiNSearch Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Weight of item(WT)info
0.01 kgSearch Icon
Insert seat(SSC_M)info
12Search Icon
Insert seat size code imperial view(SSC_N)info
1/2Search Icon
Release date(ValFrom20)info
26/09/2009Search Icon
Release pack id(RELEASEPACK)info
09.2Search Icon
