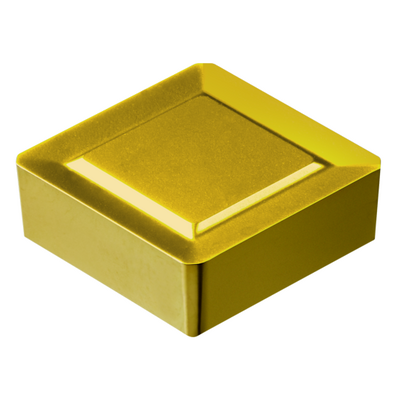

Generic representation
List price: 32.80 EUR
Available
Package quantity: 10
ISO: SBEX 12 03 ZZ-11 K20W
Material Id: 5748816
EAN: 11361943
ANSI: SBEX 12 03 ZZ-11 K20W
Start values (KAPR 90 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.17 mm (0.1 - 0.3)
hex 0.17 mm (0.1 - 0.3)
vc 170 m/min (195 - 130)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
SB1203ZZ
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
8 mm
Depth of cut maximum
(APMX)
8 mm
Corner chamfer(KCH)
45 °
Corner chamfer width(CHW)
0.56 mm
Wiper edge length(BS)
0.7 mm
Corner radius
(RE)
0.5 mm
Major cutting edge angle(KRINS)
90 °
Insert rake angle(GAN)
8 °
Hand
(HAND)
Neutral
Grade
(GRADE)
K20W
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0063 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
26/03/2001
Release pack id(RELEASEPACK)
01.1
