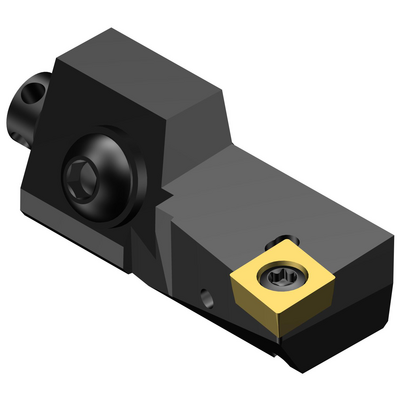

Specific representation
Package quantity: 1
ISO: SCFCL 12CA-09
Material Id: 5749014
EAN: 12026663
ANSI: SCFCL 12CA-09
Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Coolant exit style(CXSC)
no coolant exit
Lead angle(PSIR)
0 °
Clamping type code(MTP)
clamp with screw through hole
Connection - machine side(ADINTMS)
Cartridge (ISO5611) -left hand: 12CA
Insert type(CUTINT_MASTER)
CCMT 09T308
Minimum bore diameter
(DMIN_1)
50 mm
Maximum overhang
(OHX)
55 mm
Hand
(HAND)
Left
Shank width(B)
15 mm
Shank height(H)
20 mm
Mounting hole distance(MHD)
20 mm
Functional length(LF)
55 mm
Functional width(WF)
20 mm
Functional height(HF)
12 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.0987 kg
Overall length(OAL)
55 mm
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
15/08/2005
Release pack id(RELEASEPACK)
05.2
