Generic representation
Available
Package quantity: 5

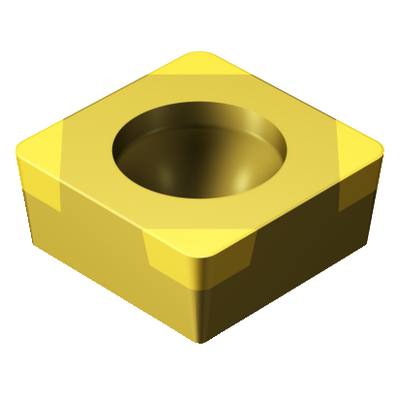

ISO: SCGW09T308T01020F 7525
Material Id: 6271899
EAN: 26271899
ANSI: SCGW3(2.5)2T0320F 7525
Start values (KAPR 75 deg )
H1.3.Z.HA, Hardness: 60 HRC
h
ap 0.15 mm (0.07 - 0.4)
fn 0.14 mm/r (0.07 - 0.27)
hex 0.08 mm/r (0.04 - 0.16)
vc 135 m/min (145 - 120)

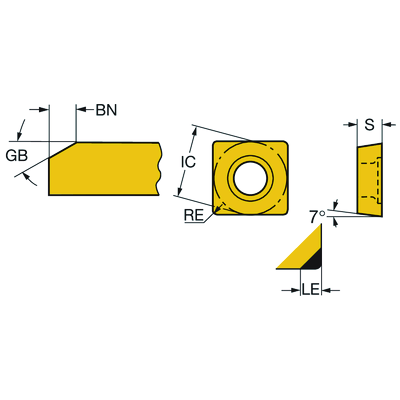

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SC09T3
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
3.1 mm
Corner radius
(RE)
0.7938 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7525
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
3.9688 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0025 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
19/09/2012
Release pack id(RELEASEPACK)
12.2
