  • Tools
  • Inserts
  • ISO inserts
  • SCGX 09 T3 08-AL H10

SCGX 09 T3 08-AL H10 content_copy

SCGX 09 T3 08-AL H10

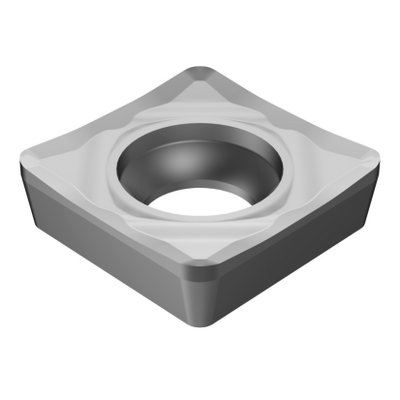

Generic representation
List price: 16.75 GBPfile_copy
Available
Package quantity: 10
ISO: SCGX 09 T3 08-AL H10file_copy
Material Id: 5748962file_copy
EAN: 11001465file_copy
ANSI: SCGX 3(2.5)2-AL H10file_copy
Start values  (KAPR  75 deg )
N1.3.C.AG, Hardness: 90 HB
N
ap 1.5  mm   (0.5 - 5)
fn 0.26  mm/r   (0.12 - 0.62)
hex 0.25  mm/r   (0.12 - 0.6)
vc 2000  m/min   (2500 - 250)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
N
S
Search Icon
Chip breaker(CBMD)info
ALSearch Icon
Operation type (CTPT)info
pre-machining with demand on surfaceSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
4.4 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
SC09T3Search Icon
Cutting edge count(CEDC)info
4Search Icon
Inscribed circle diameter(IC)info
9.525 mmSearch Icon
Insert shape code(SC)info
SquareSearch Icon
Cutting edge effective length(LE)info
8.725 mmSearch Icon
Corner radius (RE)info
0.7938 mmSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
H10Search Icon
Substrate(SUBSTRATE)info
HFSearch Icon
Insert thickness(S)info
3.9688 mmSearch Icon
Clearance angle major(AN)info
7 °Search Icon
Weight of item(WT)info
0.0026 kgSearch Icon
Insert seat(SSC_M)info
09Search Icon
Insert seat size code imperial view(SSC_N)info
3/8Search Icon
Release date(ValFrom20)info
16/06/1997Search Icon
Release pack id(RELEASEPACK)info
97.3Search Icon
