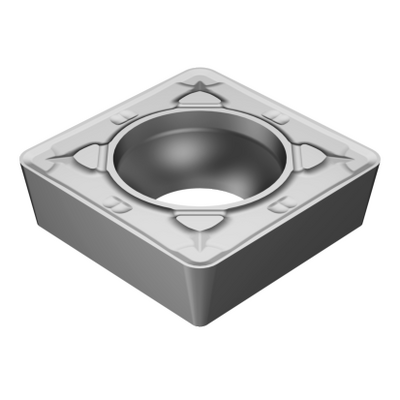

Generic representation
Package quantity: 10
ISO: SCMT 12 04 12-KR H13A
Material Id: 5749440
EAN: 11151276
ANSI: SCMT 433-KR H13A
Start values (KAPR 75 deg )
K2.2.C.UT, Hardness: 245 HB
k
ap 3 mm (1.2 - 5)
fn 0.37 mm/r (0.19 - 0.52)
hex 0.36 mm/r (0.18 - 0.5)
vc 100 m/min (120 - 90)
S2.0.Z.AG, Hardness: 350 HB
s
ap 2.4 mm (1.2 - 3.5)
fn 0.26 mm/r (0.19 - 0.36)
hex 0.25 mm/r (0.18 - 0.35)
vc 33 m/min (38 - 27)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
KR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SC1204
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
11.5 mm
Corner radius
(RE)
1.1906 mm
Face land width(BN)
0.19 mm
Face land angle(GB)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0074 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
06/12/1999
Release pack id(RELEASEPACK)
00.2
