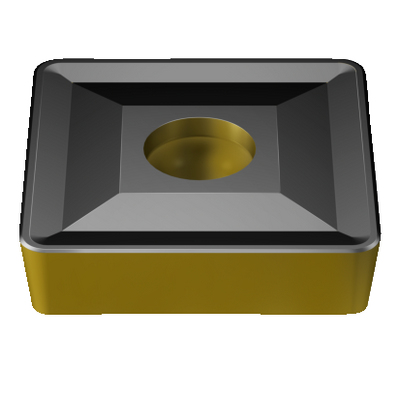

Generic representation
List price: 130.00 GBP
Available
Package quantity: 5
ISO: SCMT 38 09 32-XH 4335
Material Id: 7081124
EAN: 7323221189129
ANSI: SCMT 38 09 32-XH 4335
Start values (KAPR 75 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 18 mm (5 - 25)
fn 1.76 mm/r (1.45 - 2.07)
hex 1.7 mm/r (1.4 - 2)
vc 95 m/min (105 - 85)
M1.0.Z.AQ, Hardness: 200 HB
M
ap 18 mm (5 - 25)
fn 1.76 mm/r (1.45 - 2.07)
hex 1.7 mm/r (1.4 - 2)
vc 39 m/min (50 - 32)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
Chip breaker(CBMD)
XH
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
9 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SC3809
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
38.1 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
34.9 mm
Corner radius
(RE)
3.175 mm
Face land width(BN)
0.45 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
4335
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
9.525 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.1601 kg
Insert seat(SSC_M)
38
Insert seat size code imperial view(SSC_N)
1 1/2
Release date(ValFrom20)
19/02/2017
Release pack id(RELEASEPACK)
17.1
