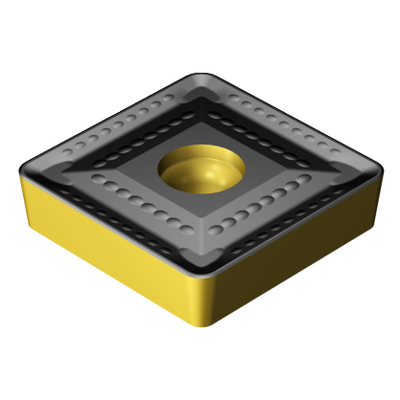

Generic representation
Package quantity: 5
ISO: SCMT 38 09 32-XM 4325
Material Id: 6532144
EAN: 26532144
ANSI: SCMT 38 09 32-XM 4325
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
XM
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
9 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SC3809
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
38.1 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
38 mm
Corner radius
(RE)
3.175 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
4325
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
9.525 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.1651 kg
Insert seat(SSC_M)
38
Insert seat size code imperial view(SSC_N)
1 1/2
Release date(ValFrom20)
25/02/2014
Release pack id(RELEASEPACK)
14.1
