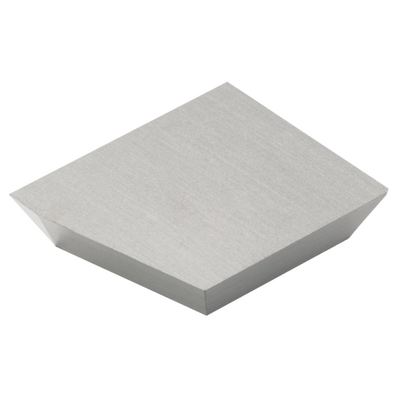

Generic representation
Package quantity: 10
ISO: SFCX 12 03 EF R-1 H10
Material Id: 5749430
EAN: 10162095
ANSI: SFC 42E12 R H10
Start values (KAPR 75 deg )
N1.3.C.AG, Hardness: 90 HB
n
fz 0.18 mm (0.1 - 0.31)
hex 0.17 mm (0.1 - 0.3)
vc 760 m/min (850 - 630)

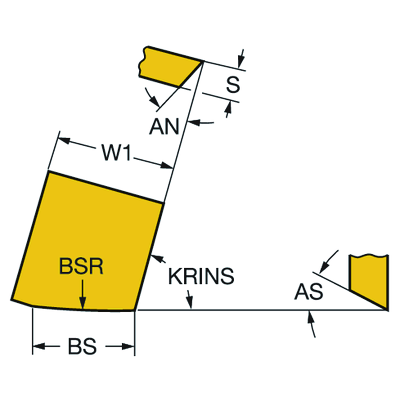

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
SF1203EF
Cutting edge count(CEDC)
1
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
10.6 mm
Depth of cut maximum
(APMX)
9 mm
Wiper edge length(BS)
10 mm
Wiper edge radius(BSR)
500 mm
Major cutting edge angle(KRINS)
75 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Right
Grade
(GRADE)
H10
Substrate(SUBSTRATE)
HF
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0059 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
03/11/1980
Release pack id(RELEASEPACK)
80.1
