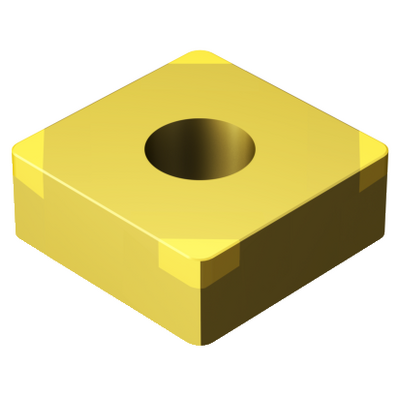

Generic representation
List price: 141.00 GBP
Available
Package quantity: 5
ISO: SNGA120408S01525F 7115
Material Id: 7106051
EAN: 7323221304911
ANSI: SNGA432S0525F 7115
Start values (KAPR 75 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.15 mm (0.07 - 0.4)
fn 0.14 mm/r (0.07 - 0.27)
hex 0.08 mm/r (0.04 - 0.16)
vc 180 m/min (195 - 160)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
2.5 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
93 °
Face land width(BN)
0.15 mm
Face land angle(GB)
25 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7115
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0034 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/09/2016
Release pack id(RELEASEPACK)
16.2
