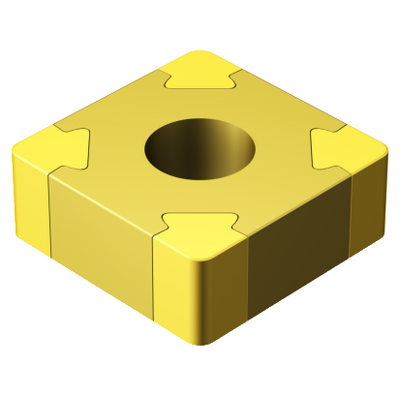

Generic representation
List price: 216.00 GBP
Available
Package quantity: 5
ISO: SNGA120412S02035B 7525
Material Id: 6155231
EAN: 26155231
ANSI: SNGA433S0835B 7525
Start values (KAPR 75 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.2 mm (0.07 - 0.6)
fn 0.16 mm/r (0.07 - 0.32)
hex 0.09 mm/r (0.04 - 0.18)
vc 135 m/min (145 - 115)

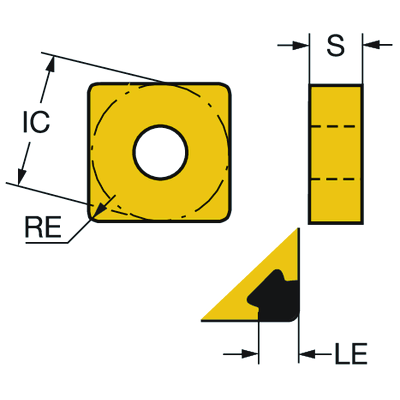

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
2.8 mm
Corner radius
(RE)
1.1906 mm
Face land width(BN)
0.2 mm
Face land angle(GB)
35 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7525
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0035 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
25/02/2012
Release pack id(RELEASEPACK)
12.1
