SNGA433T0820 6190 content_copy

SNGA433T0820 6190

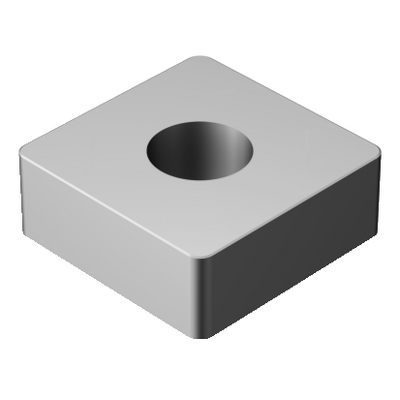

Generic representation
Available within a week
Package quantity: 10
ISO: SNGA120412T02520 6190file_copy
Material Id: 5782739file_copy
EAN: 12458902file_copy
ANSI: SNGA433T0820 6190file_copy
Start values  (KAPR  75 deg )
K2.2.C.UT, Hardness: 245 HB
K
ap 0.118  in   (0.079 - 0.157)
fn 0.02  in/r   (0.012 - 0.024)
hex 0.02  in/r   (0.012 - 0.024)
vc 1700  sfm   (2150 - 1500)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
K
Search Icon
Operation type (CTPT)info
finishingSearch Icon
Insert mounting style code (metric)(IFS)info
Cylindrical fixing holeSearch Icon
Fixing hole diameter(D1)info
0.203 inSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
SN1204Search Icon
Cutting edge count(CEDC)info
8Search Icon
Inscribed circle diameter(IC)info
0.5 inSearch Icon
Insert shape code(SC)info
SquareSearch Icon
Cutting edge effective length(LE)info
0.4528 inSearch Icon
Corner radius (RE)info
0.0469 inSearch Icon
Face land width(BN)info
0.0098 inSearch Icon
Face land angle(GB)info
20 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
6190Search Icon
Substrate(SUBSTRATE)info
CNSearch Icon
Insert thickness(S)info
0.1875 inSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.0049 lbSearch Icon
Insert seat(SSC_M)info
12Search Icon
Insert seat size code imperial view(SSC_N)info
1/2Search Icon
Release date(ValFrom20)info
10/09/2009Search Icon
Release pack id(RELEASEPACK)info
09.2Search Icon
