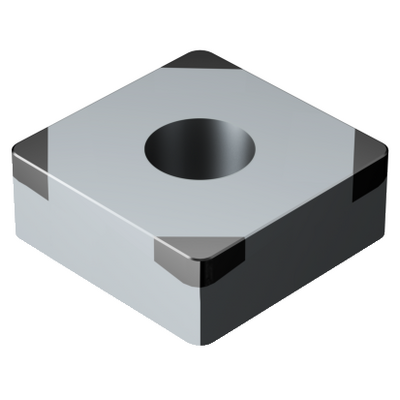

Generic representation
Package quantity: 5
ISO: SNGA120416S01025F 7125
Material Id: 7586862
EAN: 7323223812575
ANSI: SNGA434S0325F 7125
Start values (KAPR 75 deg )
H1.3.Z.HA, Hardness: 60 HRC
h
ap 0.2 mm (0.07 - 0.8)
fn 0.19 mm/r (0.08 - 0.37)
hex 0.09 mm/r (0.04 - 0.18)
vc 160 m/min (175 - 140)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
2.8 mm
Corner radius
(RE)
1.6 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
25 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7125
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0087 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
