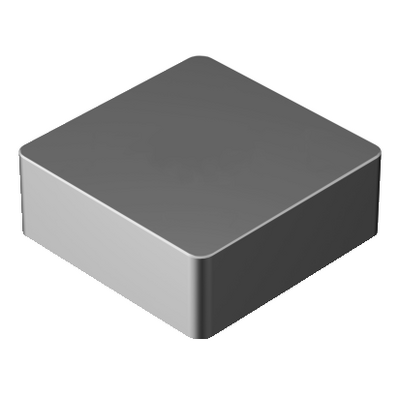

Generic representation
List price: 186.00 GBP
Available
Package quantity: 5
ISO: SNGN120412S02520M 7925
Material Id: 5782769
EAN: 12460921
ANSI: SNG433S1020M 7925
Start values (KAPR 75 deg )
K2.2.C.UT, Hardness: 245 HB
K
ap 2 mm (0.5 - 4)
fn 0.36 mm/r (0.1 - 0.83)
hex 0.35 mm/r (0.1 - 0.8)
vc 870 m/min (1150 - 600)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
11.5 mm
Corner radius
(RE)
1.1906 mm
Face land width(BN)
0.25 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7925
Substrate(SUBSTRATE)
BH
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0018 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
19/09/2009
Release pack id(RELEASEPACK)
09.2
