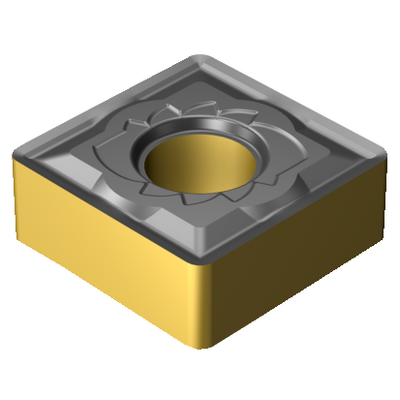

Generic representation
Package quantity: 10
ISO: SNMG 12 04 08-SM S205
Material Id: 8003634
EAN: 7323225713108
ANSI: SNMG432-SM S205
Start values (KAPR 75 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 2 mm (0.2 - 3)
fn 0.23 mm/r (0.16 - 0.41)
hex 0.22 mm/r (0.15 - 0.4)
vc 85 m/min (95 - 65)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
SM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
8.5 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
S205
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0089 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
06/05/2021
Release pack id(RELEASEPACK)
21.2
