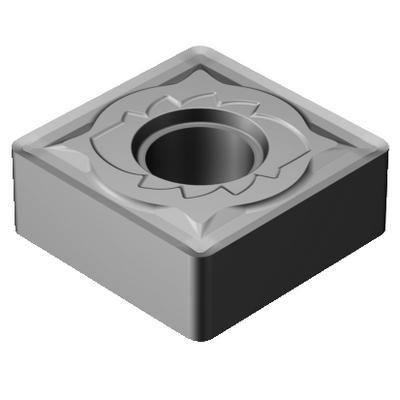

Generic representation
Available
Package quantity: 10
ISO: SNMG 15 06 16-SMR 1210
Material Id: 8432293
EAN: 7323227515168
ANSI: SNMG 544-SMR 1210
Start values (KAPR 75 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 5 mm (1 - 8)
fn 0.52 mm/r (0.31 - 0.72)
hex 0.5 mm/r (0.3 - 0.7)
vc 10 m/min (26 - 4.9)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
SMR
Operation type
(CTPT)
roughing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
6.35 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1506
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
15.875 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
10.6 mm
Corner radius
(RE)
1.5875 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1210
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.02 kg
Insert seat(SSC_M)
15
Insert seat size code imperial view(SSC_N)
5/8
Release date(ValFrom20)
26/02/2024
Release pack id(RELEASEPACK)
24.1
