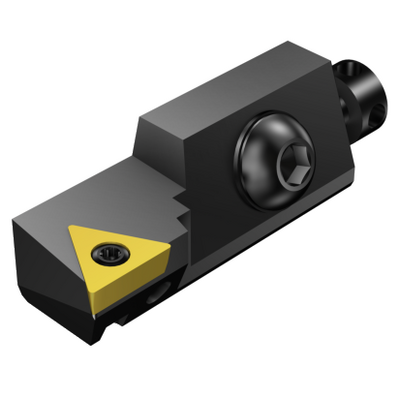

Generic representation
Package quantity: 1
ISO: STGCL 16CA-16
Material Id: 5751526
EAN: 10072042
ANSI: STGCL 16CA-16

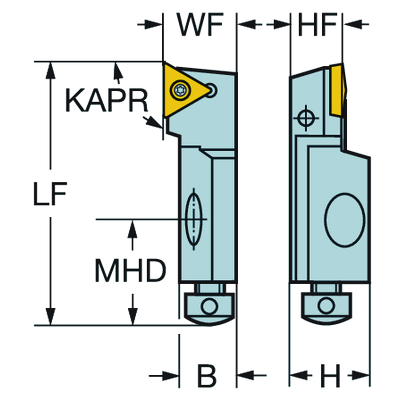

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Coolant exit style(CXSC)
no coolant exit
Lead angle(PSIR)
0 °
Clamping type code(MTP)
clamp with screw through hole
Connection - machine side(ADINTMS)
Cartridge (ISO5611) -left hand: 16CA
Insert type(CUTINT_MASTER)
TCMT 16T308
Minimum bore diameter
(DMIN_1)
60 mm
Minimum bore diameter(DMIN_2)
75 mm
Maximum overhang
(OHX)
63 mm
Hand
(HAND)
Left
Shank width(B)
20 mm
Shank height(H)
21 mm
Mounting hole distance(MHD)
25 mm
Functional length(LF)
63 mm
Functional width(WF)
25 mm
Functional height(HF)
16 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.1429 kg
Overall length(OAL)
63 mm
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
04/01/1982
Release pack id(RELEASEPACK)
82.1
