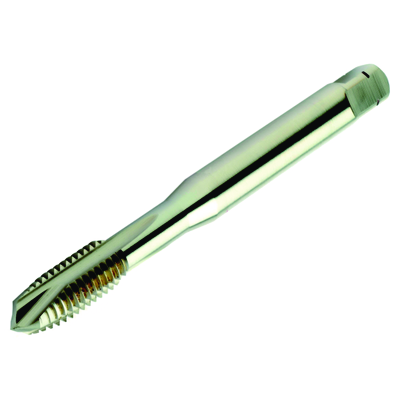

Generic representation
Being replaced by T200-XM100AA-M6 C150
Available within a week
Different grade vs. the original product – Please check cutting speed.
Available
Package quantity: 1
ISO: T200-NM100AA-M6 D150
Material Id: 7605912
EAN: 7323223903341
ANSI: T200-NM100AA-M6 D150
Start values
N1.3.C.AG, Hardness: 90 HB
N
vc 20 m/min
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Thread size(TDZ)
M 6
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
4.3404 mm
Thread pitch(TP)
1 mm
Thread diameter(TD)
6 mm
Premachined hole diameter(PHD)
5 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6H
Shank standard group(BSG)
DIN/ANSI
Usable length
(LU)
25.5854 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.255 x 0.191
Chip breaker(CBMD)
NM
Grade
(GRADE)
D150
Substrate(SUBSTRATE)
HSS-E-PM
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
6.477 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
80 mm
Neck diameter(DN)
4.55 mm
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
14 °
Threading length(THL)
15 mm
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.019 kg
Overall length(OAL)
82.3 mm
Release date(ValFrom20)
21/07/2018
Release pack id(RELEASEPACK)
18.2
