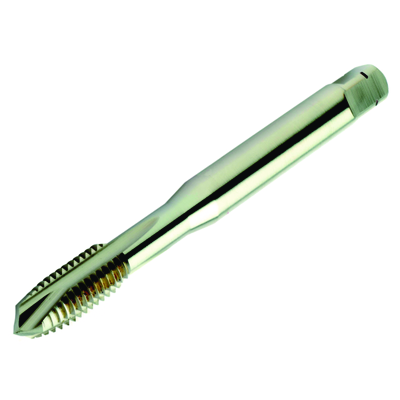

Generic representation
Being replaced by T200-XM101DA-M6 C150
Available within a week
Different grade vs. the original product – Please check cutting speed.
Available within a week
Package quantity: 1
ISO: T200-NM100DA-M6 B150
Material Id: 7605859
EAN: 7323223902917
ANSI: T200-NM100DA-M6 B150
Start values
N1.3.C.AG, Hardness: 90 HB
N
vc 20 m/min
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Thread size(TDZ)
M 6
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
4.081 mm
Thread pitch(TP)
1 mm
Thread diameter(TD)
6 mm
Premachined hole diameter(PHD)
5 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6H
Shank standard group(BSG)
DIN 371
Usable length
(LU)
27 mm
Connection - machine side(ADINTMS)
Tap shank DIN -metric: 6.00 x 4.90
Chip breaker(CBMD)
NM
Grade
(GRADE)
B150
Substrate(SUBSTRATE)
HSS-E
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
6 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
80 mm
Neck diameter(DN)
4.6 mm
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
7 °
Threading length(THL)
15 mm
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.017 kg
Overall length(OAL)
82.4 mm
Release date(ValFrom20)
21/07/2018
Release pack id(RELEASEPACK)
18.2
