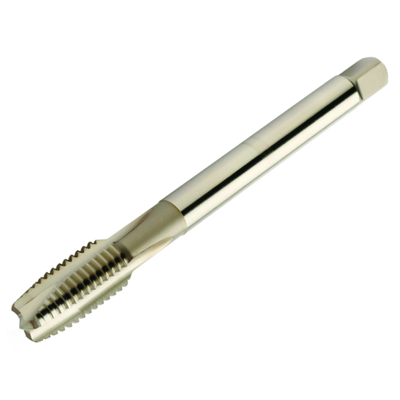

Generic representation
Being replaced by T200-XM101DA-M16 C110
Out of stock
Different grade vs. the original product – Please check cutting speed.
List price: 115.00 GBP
Available
Package quantity: 1
ISO: T200-NM101DA-M16 B125
Material Id: 7605882
EAN: 7323223903143
ANSI: T200-NM101DA-M16 B125
Start values
N1.3.C.AG, Hardness: 90 HB
N
vc 30 m/min
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
Thread size(TDZ)
M 16
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
7.7973 mm
Thread pitch(TP)
2 mm
Thread diameter(TD)
16 mm
Premachined hole diameter(PHD)
14 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6H
Shank standard group(BSG)
DIN 376
Usable length
(LU)
68 mm
Connection - machine side(ADINTMS)
Tap shank DIN -metric: 12.00 x 9.00
Chip breaker(CBMD)
NM
Grade
(GRADE)
B125
Substrate(SUBSTRATE)
HSS-E
Coating(COATING)
PVD ZrN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
12 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
110 mm
Neck diameter(DN)
11.7 mm
Flute count(NOF)
4
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
8 °
Threading length(THL)
25 mm
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.096 kg
Overall length(OAL)
110 mm
Release date(ValFrom20)
21/07/2018
Release pack id(RELEASEPACK)
18.2
