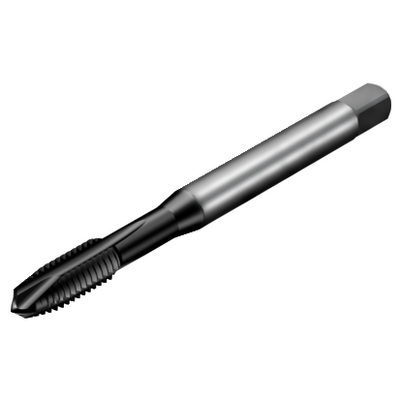

Generic representation
List price: 96.20 GBP
Out of stock
Package quantity: 1
ISO: T200-PM108DA-M10 P1PM
Material Id: 8060698
EAN: 7323225979689
ANSI: T200-PM108DA-M10 P1PM
Start values
P2.1.Z.AN, Hardness: 175 HB
P
vc 40 m/min

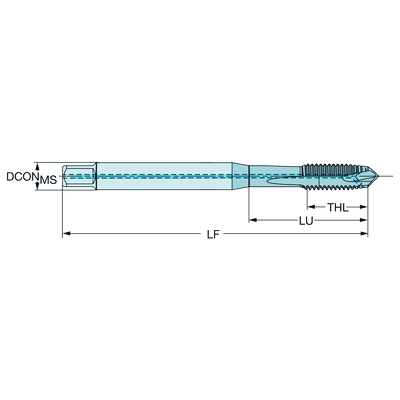

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
Thread size(TDZ)
M 10
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
6.5731 mm
Thread pitch(TP)
1.5 mm
Thread diameter(TD)
10 mm
Premachined hole diameter(PHD)
8.5 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6HX
Shank standard group(BSG)
DIN371
Usable length
(LU)
39 mm
Connection - machine side(ADINTMS)
Tap shank DIN -metric: 10.00 x 8.00
Chip breaker(CBMD)
PM
Grade
(GRADE)
P1PM
Substrate(SUBSTRATE)
HSS-E-PM
Coating(COATING)
PVD TiAlN
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
radial exit
Connection diameter machine side(DCONMS)
10 mm
Functional length(LF)
100 mm
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
9 °
Threading length(THL)
20 mm
Thread back taper property(THBTP)
Yes
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.052 kg
Overall length(OAL)
100 mm
Release date(ValFrom20)
22/02/2021
Release pack id(RELEASEPACK)
21.1
