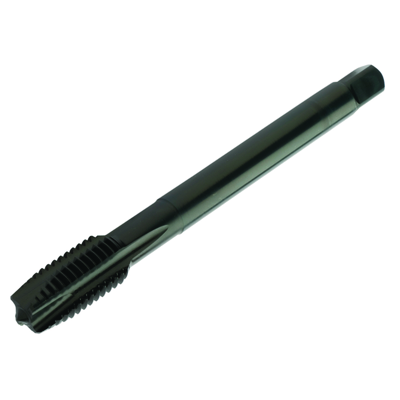

Generic representation
List price: 29.35 GBP
Made-to-order
Package quantity: 1
ISO: T200-SD101JA-M8 D150
Material Id: 8248660
EAN: 7323226761115
ANSI: T200-SD101JA-M8 D150
Start values
S2.0.Z.AG, Hardness: 350 HB
S
vc 10 sfm
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Thread size(TDZ)
M 8
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
0.2195 inch
Thread pitch(TP)
0.0492 inch
Thread diameter(TD)
0.315 inch
Premachined hole diameter(PHD)
0.2677 inch
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6HX
Shank standard group(BSG)
JIS-B-4430
Usable length
(LU)
1.378 inch
Connection - machine side(ADINTMS)
Tap shank JIS -metric: 6.20 x 5.00
Chip breaker(CBMD)
SD
Grade
(GRADE)
D150
Substrate(SUBSTRATE)
HSS-E-PM
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
0.2441 inch
Functional length(LF)
2.7559 inch
Neck diameter(DN)
0.2346 inch
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
2 °
Threading length(THL)
0.7087 inch
Thread back taper property(THBTP)
Yes
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.0419 lb
Overall length(OAL)
2.7559 inch
Release date(ValFrom20)
29/09/2022
Release pack id(RELEASEPACK)
22.2
