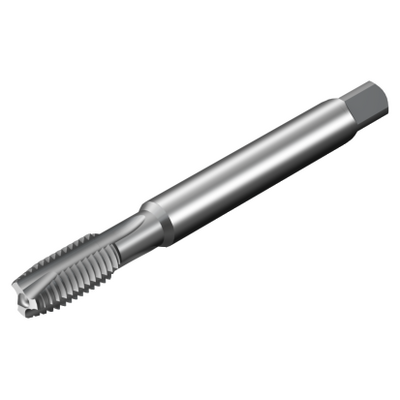

Generic representation
List price: 63.90 GBP
Available
Package quantity: 1
ISO: T200-SM101DA-M10 D115
Material Id: 7382711
EAN: 7323222268632
ANSI: T200-SM101DA-M10 D115
Start values
S4.1.Z.UT, Hardness: 200 HB
vc 8 m/min
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
S
H
Thread size(TDZ)
M 10
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
5.7373 mm
Thread pitch(TP)
1.5 mm
Thread diameter(TD)
10 mm
Premachined hole diameter(PHD)
8.5 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
6HX
Shank standard group(BSG)
DIN 371
Usable length
(LU)
33.5 mm
Connection - machine side(ADINTMS)
Tap shank DIN -metric: 10.00 x 8.00
Chip breaker(CBMD)
SM
Grade
(GRADE)
D115
Substrate(SUBSTRATE)
HSS-E-PM
Coating(COATING)
PVD AlCrN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
10 mm
Functional length(LF)
100 mm
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
2 °
Threading length(THL)
20 mm
Thread back taper property(THBTP)
Yes
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.057 kg
Overall length(OAL)
101.67 mm
Release date(ValFrom20)
23/09/2017
Release pack id(RELEASEPACK)
17.2
