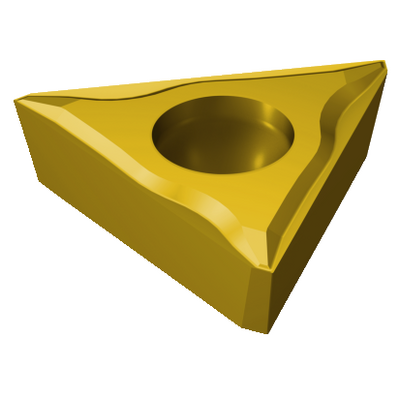

Generic representation
Being replaced by TCEX 05 01 01R-F 1125
Available
Different grade vs. the original product – Please check cutting speed.
Package quantity: 10
ISO: TCEX 05 01 01R-F 1025
Material Id: 5752351
EAN: 12218673
ANSI: TCEX 1(1)03R-F 1025
Start values (KAPR 93 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 0.15 mm (0.05 - 0.8)
fn 0.06 mm/r (0.02 - 0.1)
hex 0.06 mm/r (0.02 - 0.1)
vc 160 m/min (190 - 145)
M1.0.Z.AQ, Hardness: 200 HB
m
ap 0.15 mm (0.05 - 0.8)
fn 0.06 mm/r (0.02 - 0.1)
hex 0.06 mm/r (0.02 - 0.1)
vc 140 m/min (170 - 125)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
F
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.25 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TC0501
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
3.175 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
5.47 mm
Corner radius
(RE)
0.1 mm
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
1.4 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0003 kg
Insert seat(SSC_M)
05
Insert seat size code imperial view(SSC_N)
1/8
Release date(ValFrom20)
29/01/2007
Release pack id(RELEASEPACK)
07.1
